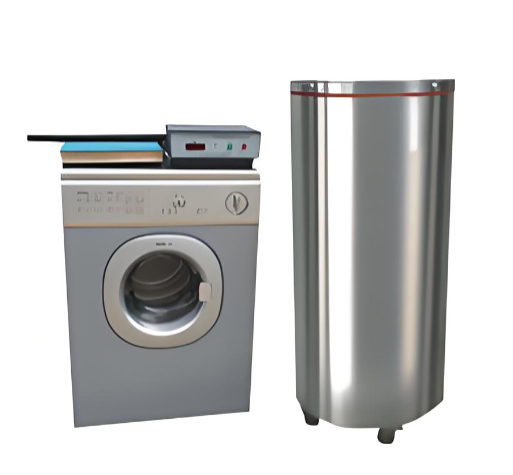

Friction charged charge tester


Used to determine the static conditions of the fabric in the form of friction in the laboratory conditions. The sample was charged with a predetermined friction material, and the potential of the sample after the injection of the Faraday tube was measured, and the charge amount per unit area was counted.

The main purpose:
According to the new standard of anti-static service GB / T12703-09 in the E law requirements, in the detection of anti-static clothing clothing friction and charging characteristics, the anti-static work clothes after charging with Faraday tube and electrostatic potentiometer supporting the use of anti-static work clothes Of the charged charge. Used to determine the static conditions of the fabric in the form of friction in the laboratory conditions. The sample was charged with a predetermined friction material, and the potential of the sample after the injection of the Faraday tube was measured, and the charge amount per unit area was counted.

Instrument features:
1, a high degree of automation, running time to set their own, time to test automatically stop, safe and convenient operation.
2, the machine uses a unique design structure. Beautiful appearance, compact structure, effectively reducing the running sound and provide equipment operating life.
3, the bottom of the machine with the activities of the caster and brake device, easy to move the device.

Applicable standards:
FZ / T01060,
ZBW4008,
GB 12059,
GB / T12703,
JIS L1094
YY-T1498-2016

Technical standard:
Measuring range: ± 1nC ~ ± 2μC (0- ± 2μC) ± 1 × 10-9 ~ ± 2 × 1011 C
Accuracy: ± (0.5% of reading + 2 digits)
Input impedance:> 1012ΩC
Dimensions: 285 × 295 × 115mm (L × W × H)
Weight: 3.5kg
Power supply: Ac220V50Hz
