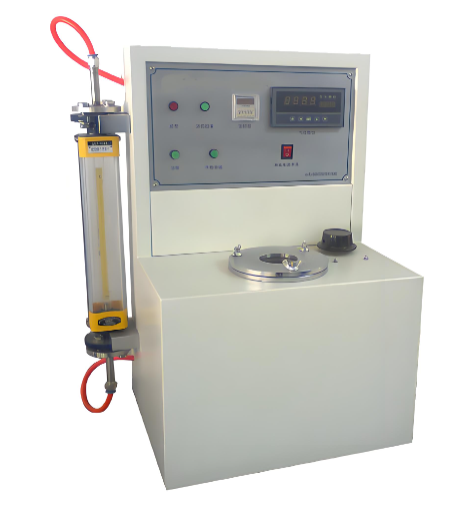

Airflow Resistance Tester


The textile airflow resistance tester is used to determine the anti-penetration properties of ordinary fabrics and medical protective masks to airflow at a constant flow rate . It is mainly used for the determination of air penetration of textiles ,cotton, and space cotton. The tester is one of the important means to identify the comfort and hygiene of clothing textiles, especially medical textiles.

Standards
 BS En 14683-2005  Surgical masks - Requirements and test methods
GB 19083-2010 Technical requirements of surgical masks
GB2626-2006  Respiratory protective products-Self-priming filtering particulate respirator overview
YY 0469-2011 Surgical masks
YYT 0969-2013  Disposable surgical masks

Features
 The instrument consists of a air source that can regulate the flow rate, a sample holding device, and an air pressure measurement system. Sample chuck made of stainless steel with built-in rubber washer ensures that the gas leak will not occur.
 Digital display airflow resistance, with zero calibration and accuracy correction function.
 7-inch color screen, capacitive touch screen, multi-point touch operating system, easy to control, multi-language display with English-Chinese switchable. System has built-in standards. Select the corresponding standard number to start the dynamic and static test with corresponding standard requirements; System also includes customized dynamic and static  test mode.

Technical Parameter

Items Parameters
Operation mode Full color touch screen control
Language Chinese– English interface
Air source Suction type
Air flow rate 5-100min/L
Sample plate 190mm round plate
Sealing method O-ring sealing
Air ventilate aperture of sample 74mm/25mm
Differential pressure sensor range 0-1kPa
Sample size Protective mask or 120mm*120mm fabrics
Power supply 220V 50Hz
