Textile color matching light box Applications:

The consistency of the light sources in all Colour Control Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.

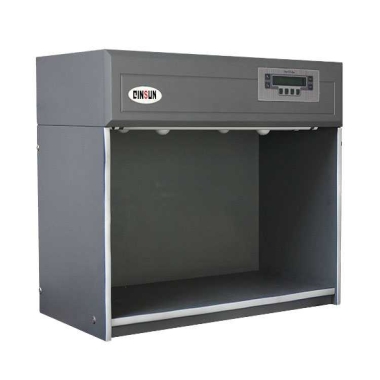

The  Color Assessment Cabinet is the smallest Light Box in our range and correspondingly is ideal for smaller product. It should also be considered for offices and production areas where space is at a premium. The smaller size is also reflected in the price.

Product Information:

The standard color matching light box can accommodate up to 4 light sources. (The CAC 60-5 will take up to 5 and is pictured right). The light sources can be specified by you, to meet your own specific needs and requirements. A typical cabinet includes UV and F with a choice of two other light sources - usually D65 and one 'point of sale' light source such as 840. 830 or Cool White. If required A or H can be supplied instead of F.

You can stipulate the voltage you require and can also ask for the cabinet to be fitted with a Diffuser and or Dimmers(dependent upon lamp options you select). The cabinets are normally supplied painted with a neutral matt grey -Munsell  N5 but can also be supplied with alternatives of paint colours, Munsell N7or Ref G5574 if required to comply with a particular customer specification.

Technical Parameters:

Overall dimension:  420mm*710mm*545mm(L×W×H)

Viewing area dimension:  380mm × 680mm × 335mm(L×W×H)

Weight:  25kg

Power:  220V/50Hz

FAQs

1. What is a Laboratory Color Matching Box?

It is a color assessment instrument used to visually compare and evaluate color differences under standardized lighting conditions.

2. What industries use it?

It is widely used in textiles, plastics, paints, printing, coatings, leather, and other industries.

3. Why is standardized lighting important?

It helps minimize the influence of different light sources and provides more consistent color evaluation.

4. What light sources are available?

Common light sources include D65 daylight, TL84. CWF, and UV, depending on the configuration.

5. What are its main applications?

It is mainly used for color matching, shade evaluation, metamerism assessment, and quality control.
