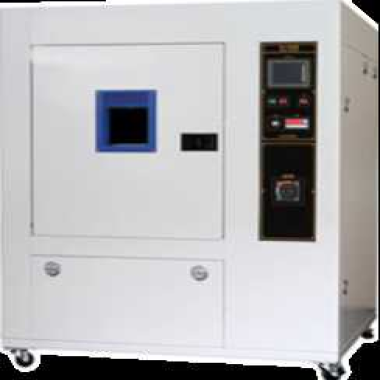

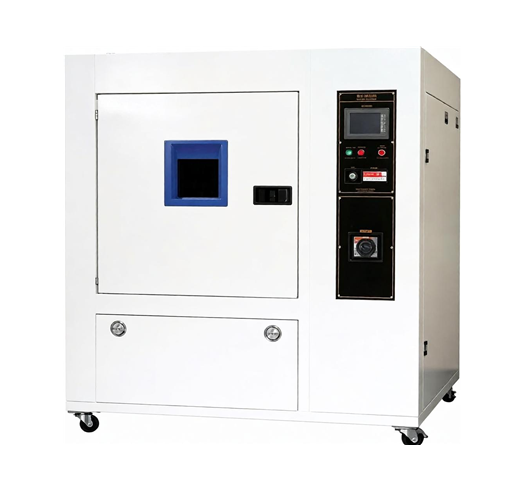

STD-9710 Waterproof testing machine
This device may be used to test the lights of automobile and auto-bikes, the function of rain sweeper, weather strip, the panel of auto-bikes, and the guiding device of the missiles in national defense system, and the cone shaped cap of radar. It may also be used to test the rainproof function of the equipment used in aviation industry.
Features
The water flow gage is adjustable. It is generally suitable for a rainfall of 10 cm/h and it can meet the requirements of maximum rainfall of 35 mm/m that may happen in the forthcoming 20 years.
The unique water dispenser may steadily control the flow of rainfall and the pressure.
RS may be separately controlled and therefore, it may be replaced without the necessity of having the operator enter the tank to do the work. The new design to eliminate water hammer.
Inverter motor pump, saving more than 50%.
Distance from the nozzle to the test substance adjustable 0(400) ~ 400 (800) mm.
R1. R2. S1. S2 world's first automatic control system, without having to manually adjust the flow and pressure, and can be instantly switched.
Specification
| model item | std-9710a | std-9710b |
|---|---|---|
| inside dimension | 1000x1000x1000(wxdxh) mm | |
| outside dimension | 1450x1300x2000(wxdxh) mm | |
| test temperature | room temperature | rt~85°c(b.p.t.) |
| rain(spray) | capality | r1: min 1.8 l/min↑ |
| r2 | min 3.2 l/min↑ | |
| s1 | min 24.5 l/min↑ | |
| s2 | min 39.2 l/min↑ | |
| pressure | r1: 0.1 kgf/cm² | |
| r2 | 0.3 kgf/cm² | |
| s1 | 1 kgf/cm² | |
| s2 | 3 kgf/cm² | |
| test specimen frame (rpm) | adjustable to 17 rpm | |
| spray nozzle rotation speed | 23 rpm | |
| power source | 220v single phase 3kva | 220v single phase 5kva |
FAQ
1. What is a STD-9710 Waterproof Testing Machine used for?
It is used to evaluate the waterproof performance and sealing ability of products under different water exposure conditions.
2. What products can be tested?
It is suitable for testing electronic products, enclosures, automotive parts, outdoor equipment, protective products, and other waterproof materials.
3. Which standards can it comply with?
It can comply with standards such as IEC 60529 (IPX1–IPX8), ISO 20653. and other related waterproof testing standards.
4. What test results can be obtained?
The tester can evaluate water leakage, sealing performance, and protection level against water ingress.
5. Can the test conditions be adjusted?
Yes, parameters such as water pressure, spray flow rate, test time, and test mode can be adjusted according to different requirements.
