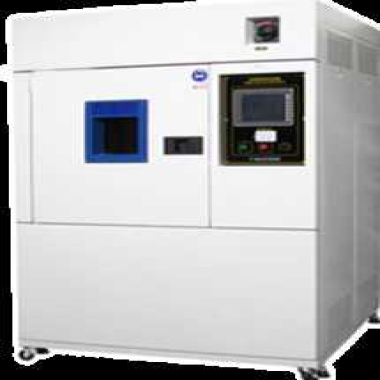

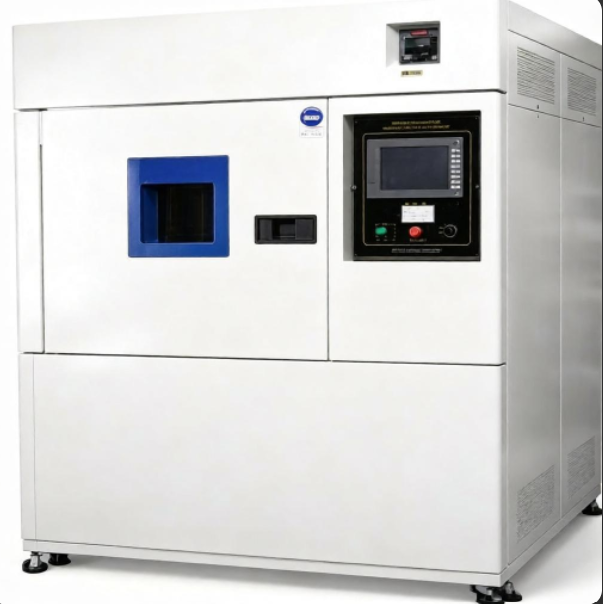

Xenon Arc Weatherometer
The xenon arc lamp, which is capable of simulating the whole natural sunlight spectrum in the most consistent manner, can reproduce the destructive light waves in different environments, so that the material can be subjected to light fastness and weather ability acceleration test. It can be used for screening new materials, improved existing materials or assessment of changes in material composition after the change in durability and other tests. The Xenon Arc Long-Life Weather Meter is designed to test a wide range of materials in the fields, such as: paint ink paint, resin, plastic, printing and packaging, adhesives, automotive/locomotive industry, cosmetics, metal, electronics, electroplating, medicine and so on.
Features
1. Water-cooled xenon arc lamp longevity guarantee long life arc 2000hr more.
2. Optical quartz glass xenon arc lamp.
3. The inner and outer filter tube metal coating process (long-life filter tube type).
4. Irradiation intensity monitor the entire process.
5. Ultrasonic and spray humidification system.
6. Rain water temperature control 10-20°C.
7. TFT, LCD color screen.
8. Voltage, current, light intensity, temperature, humidity, rainfall pressure monitor the entire process.
9. The replacement of the filter tube can type, including QUARTZ, SODA LIME, BORO, and GLASS.
10. B.P.T. And B.S.T. selectable control.
11. The effective irradiation area: 6500cm2.
12. Barrel tilting specimen holder 2 layers.
Standards
PV3929 1303.SAE J 1960. ASTM G151. ISO 105. MES, NES, VW, JIS and so on.
Specification
| Modelitem | Std-9707a (f) | Std-9707b (f) |
|---|---|---|
| inside dimension | 1100x1100x1000 (wxdxh) mm | 800x800x900 (wxdxh) mm |
| outside dimension | 1400x1400x2000 (wxdxh) mm | 1350x1300x1850 (wxdxh) mm |
| cooling model | water cooling | water cooling |
| light source | 6500w xenon arc | 4500w xenon arc |
| lamp life | ≥2000hr | ≥2000hr |
| filter glass | borosilicate / quartz / soda lime | borosilicate / quartz / soda lime |
| digital b.s.t. | 89°c | 95°c |
| digital b.p.t. | 63°c / 83°c | 63°c / 83°c |
| temp range | rt+10°c ~70°c | rt+10°c ~95°c |
| humidity range | 20%rh~98%rh | 20%rh~98%rh |
| specimen drum dia | 960mm | 630mm |
| drum rotation speed | 1rpm or 1~3rpm (adjustable) | 3rpm |
| specimen | 114 pcs in 2 stages | 48 pcs in 2 stages |
| power source | 220v / 380v, 1ф3w 13kva | 220v / 380v, 1ф3w 8kva |
| NOTE：9707A(F),9707B(F) is the Xenon Arc Weather Meter | ||
FAQ
1. What is a Xenon Arc Weatherometer used for?
It is used to simulate sunlight, temperature, humidity, and rain conditions to evaluate the weathering resistance of materials.
2. What materials can be tested?
It is suitable for testing plastics, coatings, paints, automotive parts, textiles, rubber, and other outdoor materials.
3. Which standards can it comply with?
It can comply with standards such as ISO 4892-2. ASTM G155. ASTM D2565. and other related weathering test standards.
4. What test results can be obtained?
The tester can evaluate color fading, gloss change, cracking, aging, and other degradation caused by light and weather exposure.
5. Can testing conditions be adjusted?
Yes, parameters such as irradiance, temperature, humidity, spray cycles, and test duration can be controlled according to requirements.
