Product Information

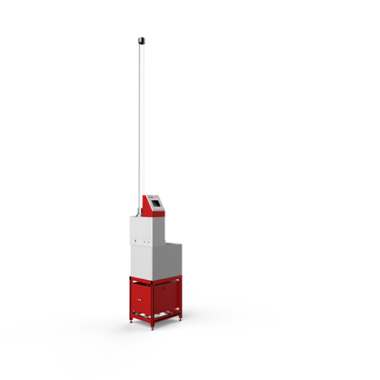

Simulated rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Samples are backed with a standardised blotting paper which is weighed before and after each test. The rain is formed by a column of water which can be adjusted from 600mm (24in) to 2400mm (96in) depending on model in 300mm (12in) increments, applied via a standardized nozzle.

Modification not allowed, to order with new rainfall tester. Provided with water supply system of temperature controlled, which includes electronic temperature controller, mixing tank and solenoid valve.

Standards

AATCC35. BS EN ISO 22958. GB/T 23321

Applications

Water Proof Tester is designed to determine the penetration resistance of fabrics or composites at different intensities of water impact.

Technical parameters

1. Control: LCD color touch panel;

2. Water column: 60 ~ 150cm + 1.5cm(standard), 60 ~ 240cm + 1.5cm(extension);

3. Sample frame: 285 * 190mm(305mm from the nozzle);

4. Heater: 1000W;

5. The temperature control: room temperature 40 ℃ ~ + / - 0.8 ℃ (no cooling device);

6. Supply of water: tap water or distilled water;

7. Reservoir: 40L;

8. Dimensions: 700 * 600 * 2460mm(length x width x height);

9. Weight: 125kg(275lb);

10. Power supply: 23/120vac, 50/60hz.

Instrument configuration

1. Control panel of LCD color touch screen with rainproof test instrument;

2. Water column pipe, 240cm;

3. Standard sprinkler head;

4. Sample rack and rack;

5. 40L reservoir;

6. 150cm water column pipe (optional);

7. AATCC suction filter paper 500 x 1000mm(25 pieces)(optional).

FAQ

What is the tester used for?

It evaluates the waterproof or water resistance performance of materials.

What materials can be tested?

It is suitable for fabrics, garments, coated materials, and related products.

How is the test performed?

A controlled amount of water is applied to the specimen under specified conditions.

What results can be obtained?

The tester evaluates water penetration or water resistance performance.

Can it meet testing standards?

Yes, the equipment can be configured according to applicable test standards.
