Product Information

The main principle of the wrinkle recovery tester is to apply a predetermined pressure to the specimen under standard atmospheric conditions and to maintain the specified time. The overall structure of the instrument and the precise spiral column ensure that the loaded specimens produce a uniform deformation. After removing the sample from the instrument, re-adjust the sample under standard atmospheric conditions and allow it to recover for a certain period of time, and then compare the sample with the reference sample to assess the appearance of the sample.

Set of 5’’×3’’ plastic replicas are available to grade fabrics(grade 1-5).

Technical Parameters

1. Sample Size: 15cm × 28cm (6 × 11 inches)

2. Weight: 2000g, 1000g, 500kg, 200kg, cumulative type

3. Dimensions: 150 × 150 × 330mm (6 × 6 × 13 inches) (length × width × height)

4. Weight: 9.5kg (21lb)

Testing Standards

AATCC 128. ISO 9867. ENKA 3061

Applications

AATCC Wrinkle Recovery Tester is used to determine a fabric's ability to recover after wrinkling under a predetermined load for a set period of time.

Instrument configuration

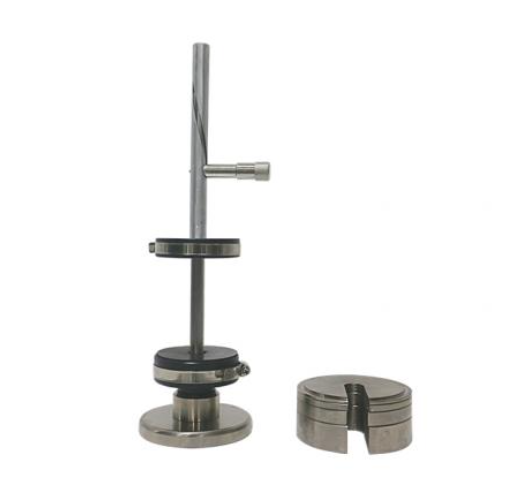

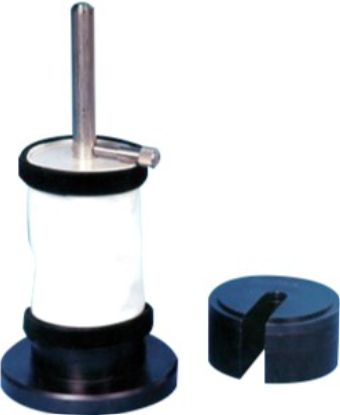

1. Standard weight (2000g, 1000g, 500kg, 200kg)

2 plastic board 5 × 3 inches (5 / set)

3. rating chart card (optional)

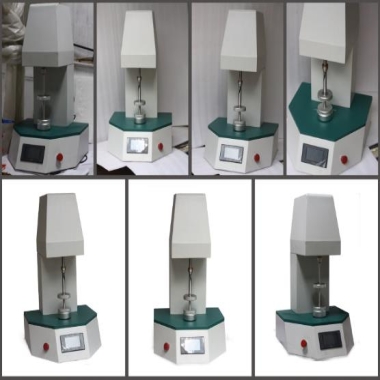

Product Display

FAQ

What is the tester used for?

It measures the wrinkle recovery performance of fabrics.

What materials can be tested?

It is mainly suitable for woven and knitted textile fabrics.

How does it work?

The fabric is folded under a specified load and evaluated for recovery.

What results does it provide?

It determines the wrinkle recovery angle or recovery performance.

Is the test process automatic?

Yes, the tester can automatically control the test and record results.
