Product Information

A.Designed with a sealing stainless steel combustion cabinet with observation window;

B.Fitted with standard combustion chronograph, for accurate detection of flame spread rate;

C.Different specimen holders and associated hardwares for various test standards;

D.Automatic Gas Control System including solenoid control gas valve and automatic ignition timer and controls.

Applications

VTEC Vertical Flammability Chamber for measuring the vertical flame spread for childrens’ sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture.

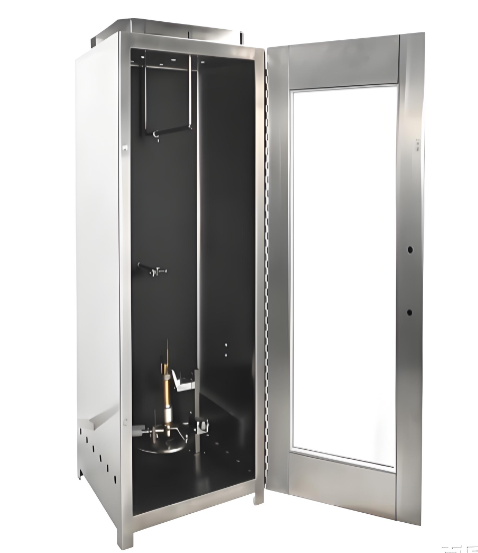

Comprises a draft free stainless steel cabinet with observation window and back wall painted black for easy test viewing. The different specimen holders and associated hardwares are dependent on the test standards. Automatic Gas Control System could easily control the combustion process.

Optional

1.CHILD.SLEEPWEAR TEST PKG(VFC,NA)

Accessories for DOC-FF3/71 (Childrens’ Sleepwear)

Include:

- 1 x Burner

- 5 x Specimen Holders

2.CALIF.TB-117 TEST PKG

Accessories for CALIF TB-117 (Resilient Filling Materials Vertical)

Include:

- 1 x Burner

- 5 x Specimen Holder

- 1 x Weights

3.CPAI-84 TEST PKG

Accessories for CPAI-84(Tent)

FAQ

What is the machine used for?

It evaluates the vertical flammability and burning behavior of materials.

What materials can be tested?

It is mainly suitable for textiles, fabrics, and other flexible materials.

How does the test work?

A controlled flame is applied to a vertically mounted specimen.

What parameters can be measured?

Burning time, afterflame time, afterglow time, and damage length can be evaluated.

Can it meet international standards?

Yes, configurations can be designed according to applicable testing standards.
