Applications

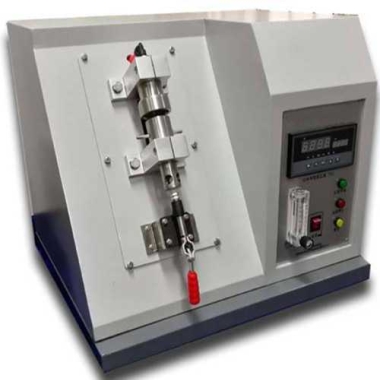

Medical Mask Differential Pressure Tester or Medical Mask Differential Pressure Tester, is a lab testing instrument for determination breathability of medica face masks, the test principle is,  through measuring the differential pressure required to draw air through a measured surface area at a constant air flow rate, to test the air exchange pressure of the medical face mask material, which indicates the breathability of medical face masks.

Built-in water-filled differential manometer is used to measure the differential pressure, a mass flow meter is used for measurement of the airflow. An electric vacuum pump draws air through the medical mask breathability tester and a needle valve is used to adjust the airflow rate.

Medical face masks differential tester complies with standards like EN 149. EN 14683. ASTM F2100. MIL-M-36954C, GB 19083. GB 2626. YY/T 0969-2013.

Standards

EN 149.

EN 14683.

ASTM F2100.

MIL-M-36954C,

GB 19083.

GB 2626.

YY/T 0969-2013

Specifications

Air source: Suction pump

Air flow: 8L/min

Sealing method: Mechanical face seal

Diameter for circular sample holder: Ф25mm

Differential pressure transducer:0-500Pa

Display: Digital display

Power supply:220 AC  50Hz

Dimension: 550mm×400mm×700mm

21.65inch×15.75inch×23.62inch

Net weight:  40 kg

Features

Suction chamber air source to provide the pump.

High resolution differential pressure transducer with digital display for results.

Special sample holder to ensure holding sample

FAQ

1. What does it test?

Measures mask differential pressure and breathability.

2. What standards apply?

EN 14683. ASTM F2100. and applicable standards.

3. What masks can be tested?

Medical and surgical face masks.

4. How does it work?

Measures pressure difference under controlled airflow.

5. What is the main application?

Mask R&D and quality control.
