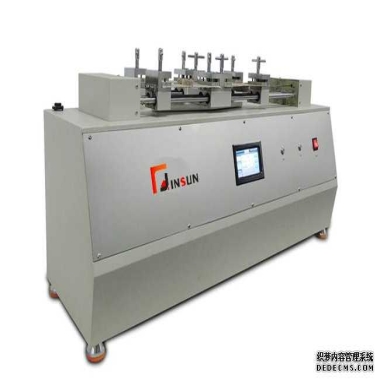

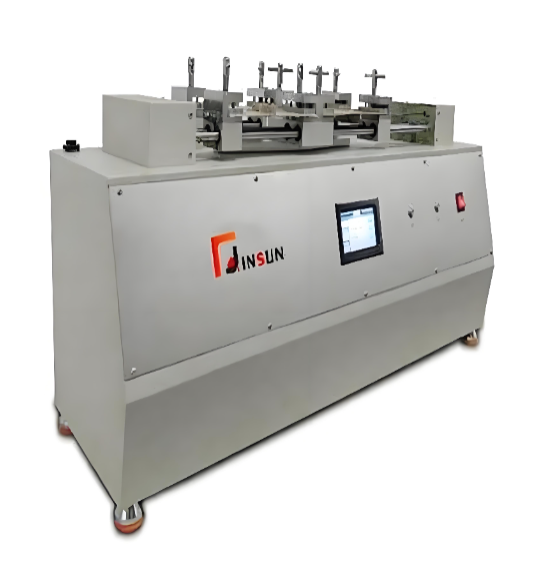

A Dynamic Fatigue Testing Machine is a testing device used to evaluate the fatigue resistance and durability of materials, components, or finished products under repeated dynamic loading. It applies controlled cyclic forces, movements, or stresses to simulate long-term operating conditions and measures performance changes, deformation, cracking, or failure during the test.

Applications

Theseam fatigue tester is designed to evaluate the fatigue resistance of seam on the material which is applied on the surface of automotive seat. The surface material of car seat (leather, synthetic leather, fabric, etc.) is often stitched together.

The stitching strength of the material seam and the fatigue strength of the seam can directly affect the service life of the seat. The strength and life of the joint of the test material can effectively predict the life of the seat and provide the direction of improving the service life.

Leather seam fatigue tester Testing Method:

The operator installs the set up gage between one pair of sample clamps on a station. The sewn test sample is aligned and clamped into position.The set up gage is removed and installed on the second station. The second sample is aligned and clamped into position and the set up gage is removed. The desired number of test cycles is entered on the cycle counter and the test is started. Once this cycle count is reached the machine will automatically stop. Test samples are visually evaluated.

Features

1.Mechanical components are constructed of non-corrosive Aluminum and Stainless Steel.

2.Durable Powder Coat and Anodized finishes.

3.Precision ball and needle bearings.

4.Programmable count-up controller with automatic stop.

5.Adjustable jog and test speed controls.

6.Adjustable weight shelf height.

7.Adjustable clamp separation distance.

8.Vented Protective Cover protects operator hands from pinch points.

Technical Parameters

1.Stations: 2;

2.Testing load: 3kg;

3.Speed: 30 cycles/minute;

4.Cycle counter: 4 digits (standard of 2500);

5.Stroke: 140mm;

6.Sample clamp separation: 120. 124. 140. adjustable;

7.Sample clamp width: 50mm;

8.External dimension: 13×31×17 inches (L×W×H);

9.Weight: 50kg (110lb).

FAQs

1. What is a Dynamic Fatigue Testing Machine used for?

It is used to evaluate the fatigue life, durability, and resistance of products under repeated dynamic loading.

2. What types of products can be tested?

It can be used for components, materials, mechanical parts, footwear, automotive parts, and other products requiring cyclic fatigue testing.

3. What parameters can be controlled?

Typical parameters include load, frequency, displacement, test cycles, and testing time.

4. What does the test measure?

It can measure fatigue life, deformation, damage, cracking, and failure cycles.

5. Can the machine perform automatic testing?

Yes. Depending on the model, automatic control, cycle counting, data recording, and test-stop functions can be provided.
