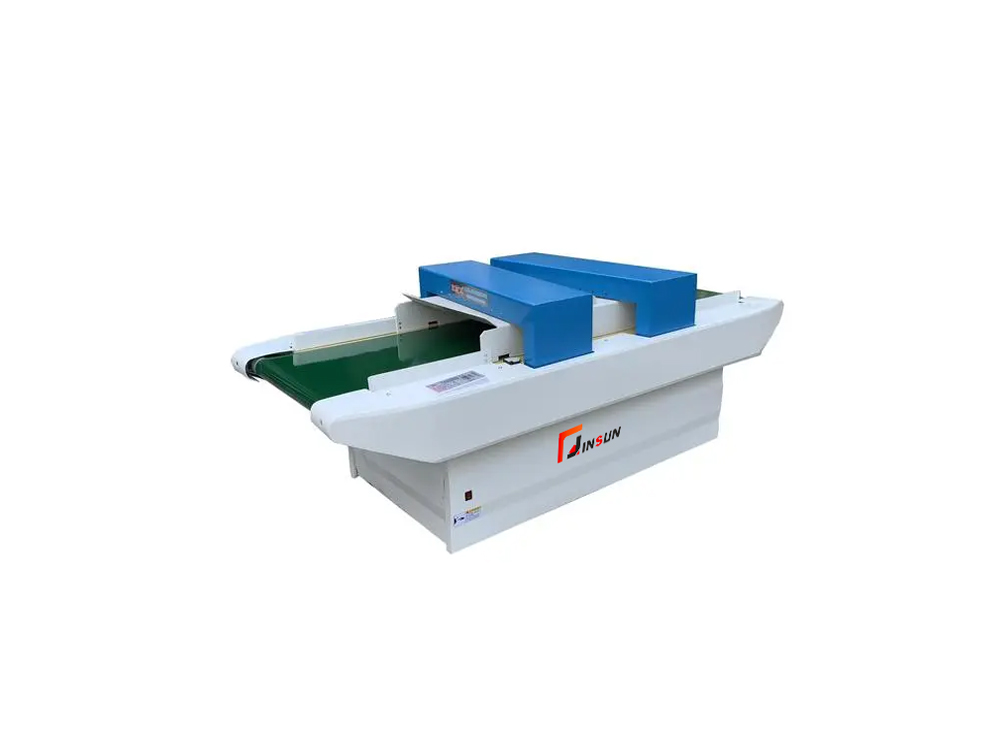

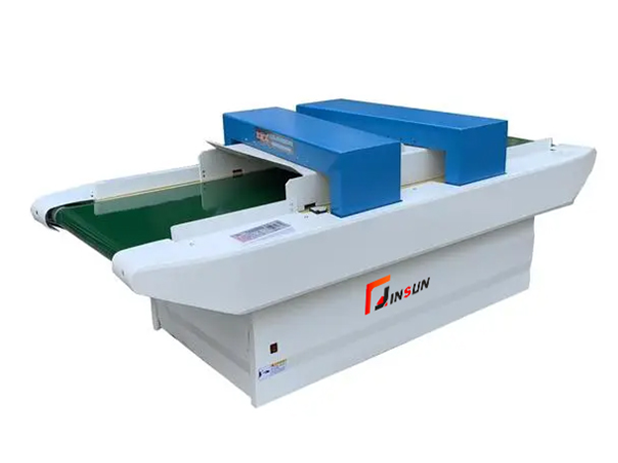

The Conveyor Needle Detector is an automatic inspection device used to detect broken needles and other ferrous metal fragments in textile products. It is widely used in garment factories and textile production lines to ensure product safety and quality.

Application

It is applicable to detect broken needle and iron matters inmany industries such as garment, textile, shoes and hats,home textiles, quilting etc.

Basic characteristics

Power voltage: AC220V 50Hz ±10%

Power: 9OW

Detection width: 600mm

Height passing the products: 80.110.130.150mm

Sensitivity: O-10 level adjustable

Detectability:0.8.1.0.1.2.1.5Fe iron ball have reaction

Conveyor belt rotation speed:30mz/min

External dimension: (Length x Width x Height)2400×1050×900 mm

Gross weight: 320kg

Function and features

1、Configure with anti-static non-metal rubber conveyor belt.

2、Alarm modes are respectively sound and light to worksimultaneously, enable to help operators to find

3、Machine equipped with counting function, it is divided intogood product, bad product and summation.

4、Possess the detection of thick fabric and thin fabric, aswell as functions such as automatic return of detectedgoods and automatic counting etc.

5、The type of needle detector possesses the largest featureas:one-time detection obtains twice needle detectioneffects, and two detection heads display in form of “X”，increases 30% cutting surface based on magnetic fieldcutting of single head, largely upgrades detection quality.

6、The machine adopts special magnetic-sensing materialsand special technology to manufacture scientifically tomake particularly high detection accuracy, and scientificallysolves "common fault”as poor anti-interference existingin needle detector field currently.

FAQ

1. What is a Conveyor Needle Detector used for?

It is used to detect broken needles and ferrous metal contaminants in textile products.

2. What products can be inspected?

It is suitable for garments, fabrics, towels, bedding, and other textile products.

3. Can it detect broken sewing needles?

Yes. It is specifically designed to detect ferrous fragments such as broken sewing needles.

4. How does it work?

Products pass through a magnetic detection area on the conveyor, and the system automatically detects metal contamination.

5. What happens when metal is detected?

The machine typically triggers an alarm and stops or rejects the contaminated product, depending on the configuration.
