Product Introduction

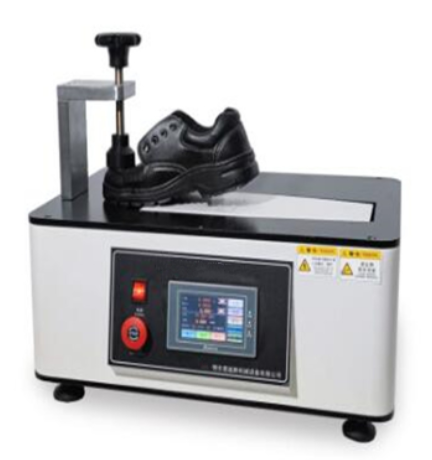

Shoe bending Angle testing machine is mainly used for outsole rigidity test, with a solid block the front of the shoe clamped on the hard base, with the speed of (100±10)mm/min to increase the force of 30N, observe the Angle of the bending of the outsole, according to its Angle to determine whether the product needs to enter the folding resistance test.

Reference standards

GB/T 20991-2007 "Test methods for Personal Protective Equipment Shoes" 8.4.1 —— 4

QB/T 1002-2015 Leather Shoes 5.5.4.2

QB/T 2885-2007 "Footwear outsole test methods for folding Performance" 4.2

BS EN ISO 17707-2005

Technical parameters

1. speed: 100±10/mm/min

2. load: 30kg

3. display: LED digital display

4. Volume: 67X53X65cm

5. Weight: 60kg

6. voltage: AC 220V

Accessories

(1)Shoe clamping fixture for different sizes

(2)Calibration weights and adjustment wrench

(3)Power cable

(4)Instruction manual

(5)Delivery note/documentation

Test Procedures

(1)Place the shoe or outsole sample on the hard base and secure it using the clamping mechanism.

(2)Set the desired force (30 N) and speed (100 ± 10 mm/min) on the control panel.

(3)Initiate the bending test; the forefoot is bent until the applied force reaches the set value.

(4)Record the bending angle displayed on the LED readout.

(5)Compare results with standard requirements or use as a preliminary assessment for further flexing tests.

Maintenance Information

(1)Regularly clean the clamping fixture and hard base to prevent debris accumulation.

(2)Inspect and tighten moving parts and screws to maintain alignment and accuracy.

(3)Verify calibration of the LED digital display periodically.

(4)Lubricate mechanical components according to manufacturer recommendations.

(5)Store the tester in a dry environment to prevent corrosion or damage.
