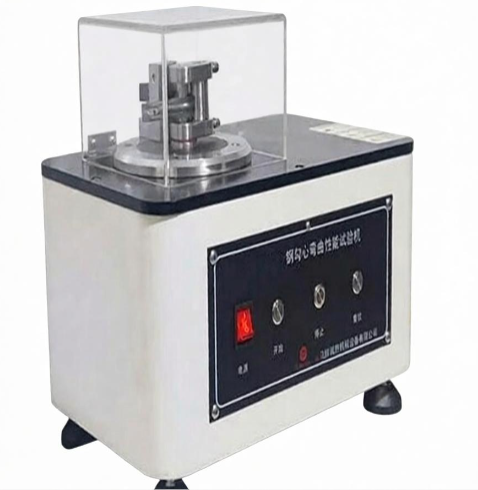

Product Introduction:

The electric hook core anti-bending performance tester is used to test the anti-bending performance of the steel hook core. Insert the hook core into the fixture and rotate it 180° around the center column with a diameter of ∮10mm. Visually detect the small crack on the surface and whether it is broken to determine its quality.

According to the criteria:

GB/T28011-2021 Footwear Steel core, QB/T 1917-2000 "Leather Shoes Steel Core"

Technical parameters:

1. Bending Angle: 0-180°

2. Center column: ∮10mm

3. Test speed: 60±10s/r

4. Protective cover: 6mm thick transparent protective cover

5. Overall size: 580×390×140mm（W×D×H）

6. Weight: 20kg

7. Power supply: AC220V 50HZ

Technical features:

1. Adjustable fixture, easy to install;

2. New standard electric automatic bending;

3. One-button reset, automatic return to zero position.
