Product Introduction:

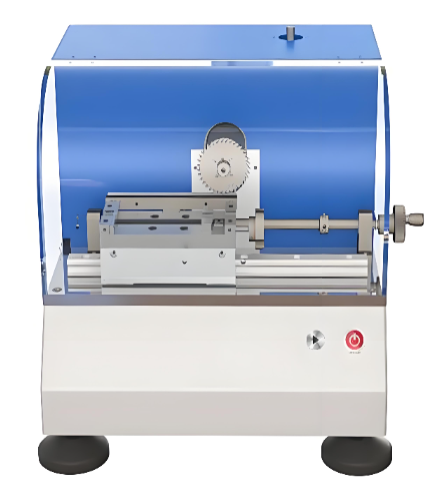

Plastic electric notch prototype is a cantilever beam, simply supported beam impact testing machine to do the impact toughness test of non-metallic materials used in the notch sample sample production equipment, impact notch prototype equipment can be used in scientific research institutions, colleges and universities, non-metallic materials production plants and other units of the laboratory to make notch samples.

Reference standard:

ISO 180-2000 "Plastics - Determination of impact strength of rigid cantilever beams"

GB/T 1843-2008 "Rigid plastic cantilever beam impact test method"

JB/T 8761-1998 "Plastic Cantilever beam Impact Testing Machine"

ASTM D256-2010 "Test Method for Determining the Impact Strength of IZOD Pendulus in Plastics"

ISO 179-2000 "Plastics - Determination of impact strength of simple supported beams of Hard materials"

GB/T 1043-2008 "Rigid plastic simple supported beam impact test method"

JB/T 8762-1998 "Plastic Simply supported beam Impact Testing Machine"

Technical parameters:

Table stroke: >160mm

Feed speed: 30mm/min

Sample type: Type 1, type 2, type 3

Notch type: Type A, Type B （optional）， Type C （optional）
