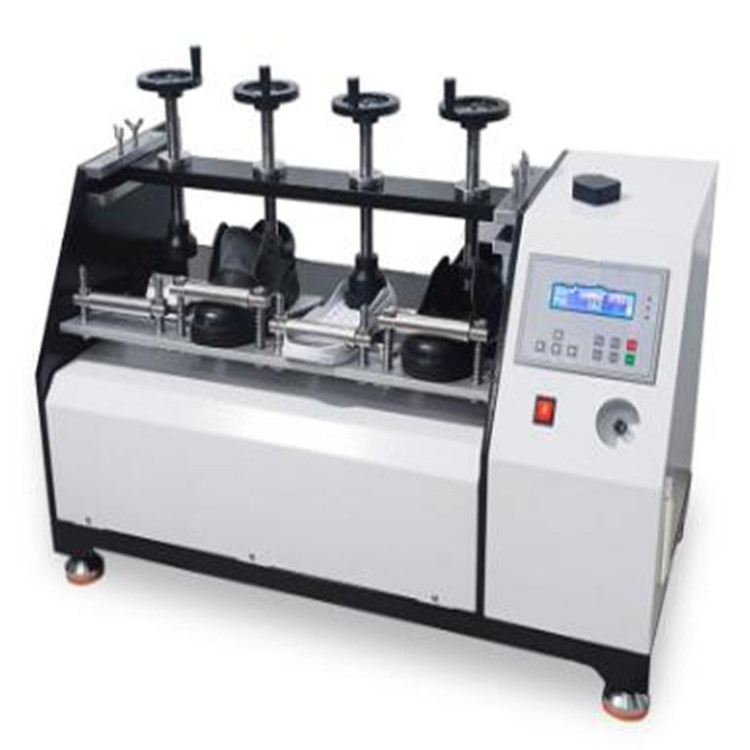

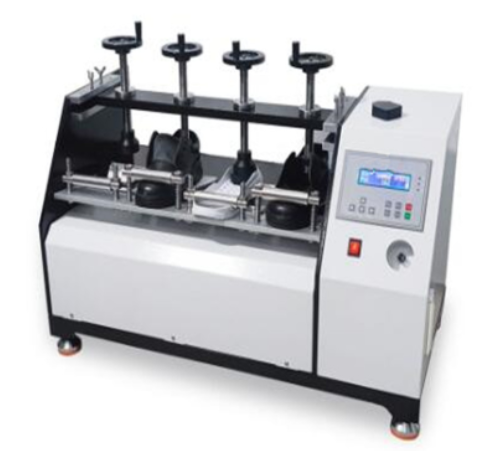

The Shoe Flexing Tester is designed to evaluate the durability of finished shoes and sole materials by applying continuous, controlled bending at a fixed angle and frequency. It measures resistance to repeated flexing and the potential for crack initiation or growth, providing objective data on the performance and longevity of footwear under simulated walking or stress conditions.

Applications

(1)Testing finished athletic shoes such as running shoes, basketball shoes, and trainers for bending resistance and crack propagation under dry or wet conditions.

(2)Evaluation of casual shoes including leather shoes, canvas shoes, and sneakers for long-term flex durability.

(3)Testing work and safety shoes such as steel-toe boots, composite-toe shoes, and hiking boots for repeated flexing under simulated use.

(4)Assessment of sole materials including EVA, PU, rubber, thermoplastic, and fiberboard for flexural fatigue and cracking resistance.

(5)Quality control in footwear manufacturing for all types of shoes to ensure compliance with durability standards.

(6)R&D testing of new shoe prototypes and experimental sole formulations to evaluate flexing performance.

(7)Inspection of industrial and professional footwear designed for long-term wear, outdoor activities, or extreme conditions.

(8)Testing children’s shoes for bending and zigzag resistance to ensure safety and comfort during play.

(9)Evaluation of orthopedic and therapeutic footwear to verify structural integrity over repeated flexing cycles.

Standards

(1)HG/T 2871-2008, Method B — Finished Footwear Flexing Test

(2)GB/T 20991-2007 — Testing Methods for Finished Footwear

(3)QB/T 2881-2007 — Test Methods for Footwear Flexing Resistance

(4)EN ISO 20344:2011 — Personal Protective Equipment — Test Methods for Footwear

(5)SATRA TM92 — Resistance of Footwear to Flexing

(6)ASTM F1590 — Standard Test Method for Flexing Resistance of Footwear Soles

(7)DIN 53512 — Testing of Shoe Soles for Flexing Resistance

Product Features

(1)Evaluates durability of finished shoes and sole materials under repeated flexing conditions.

(2)Supports multiple specimen types, including finished shoes and interchangeable sole samples.

(3)Adjustable bending angles and flexing speeds to meet different shoe types and test standards.

(4)LCD digital counter for precise cycle tracking.

(5)Robust construction for reliable long-term fatigue testing.

Technical Parameters

FAQ

1. What is the purpose of the Shoe Flexing Tester?

The Shoe Flexing Tester is designed to evaluate the flexing durability and resistance to repeated bending of complete shoes. It simulates walking conditions by repeatedly bending the shoe sole and upper materials to assess their performance and service life.

2. What types of footwear can be tested with a Shoe Flexing Tester?

The tester is suitable for various types of footwear, including leather shoes, sports shoes, casual shoes, safety shoes, and other finished footwear products. It can evaluate the flex resistance of different sole and upper materials.

3. Which standards are applicable to the Shoe Flexing Tester?

The Shoe Flexing Tester can be manufactured according to international footwear testing standards, such as SATRA TM92. ISO 5423. ISO 17707. and other related footwear flexing test methods. Customized configurations are also available based on specific testing requirements.

4. What parameters can be evaluated during the shoe flexing test?

The tester can evaluate the number of flexing cycles, sole cracking, upper material damage, adhesive failure, deformation, and other changes after repeated bending. These results help determine the durability and quality of footwear.

5. Why is the Shoe Flexing Tester important for footwear manufacturers?

The tester helps manufacturers verify product durability, improve shoe design, select suitable materials, and ensure compliance with quality standards. It is widely used in footwear production factories, research laboratories, and quality inspection organizations.
