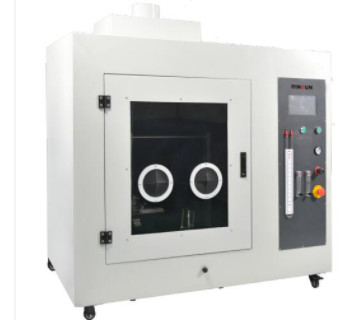

Protective Clothing Vertical Flame Spread Tester is mainly used in areas such as safety protection and soft furniture. QIINSUN is developed according to the ISO15025 test standard, and it also meets the requirements of the AQ 6103-2007 welding characteristics test standard for welder protective gloves. The test principle is to ignite the bottom side and edge of the vertically suspended sample for 10 seconds through a standard small flame, test its continued burning time, smoldering time, and measure the length of damage to judge the flame retardant performance of the protective fabric.

Performance characteristics:

1. The flame spread tester for protective clothing includes burner, sample needle frame, sample suspension support frame, burner control system, man-machine interface display device, etc.;

2. The test instrument can be upgraded to meet the requirements of other test standards, such as ISO6941, ISO6940, etc., by being equipped with different test needle frames;

3. The angle of the burner is controlled by a stepping motor, which can automatically perform bottom side ignition and edge ignition;

4. The burning test time can be set to 10s or other times;

5. The continuous burning and smoldering time can be recorded on the LCD display.

The above is the detailed explanation of Protective Clothing Vertical Flame Spread Tester that QINSUN will answer for you. Of course, if you need to purchase, please leave a message and order!
