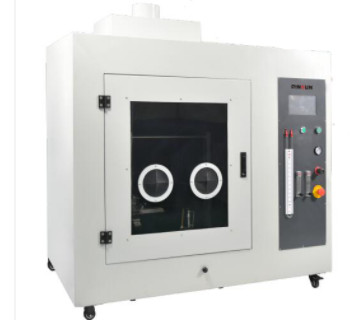

The Protective Clothing Vertical Flame Spread Tester is used to measure the thermal radiation resistance of single or multi-layer fabrics in high temperature environments, and can also be used to measure the thermal insulation properties of other fire-retardant and flame-retardant sheets. Thermal radiation resistance is an important performance index of flame retardant products. Accurate determination of its protective performance has important guiding significance for selecting materials, researching and developing new products, and improving processing technology.

Its corresponding technical parameters:

Silicon carbide rod heating power: 6.5kw/220v/50hz, heating part length 178mm, diameter 8mm

Heat source heat flux density: 10kw/m2～80

kw/m2 adjustable

Thermal radiation source temperature control: normal temperature ~ 1200 ℃ ± 5 ℃ (display accuracy is 1 ℃)

Thermal radiation source temperature sensor: thermocouple

(0～1600℃)

Heat radiation source temperature thermostat: with pid intelligent adjustment controller

Calorimeter heat capacity: measured about 480.937

j/k, heating area (50×50)mm2

Calorimeter temperature measurement range: normal temperature ~ 80 ° C; temperature sensor pt100 platinum resistance (-200 ~ 450 ° C)

Operating platform: Chinese windows

XP operating system, data output: t1, t2, t3, qc, tf and their average

Circulating water pump: hqb-3900/100w/220v/50hz

Air source: mini air compressor, power 1/4hp

To learn more about the Protective Clothing Vertical Flame Spread Tester, drop us a note!
