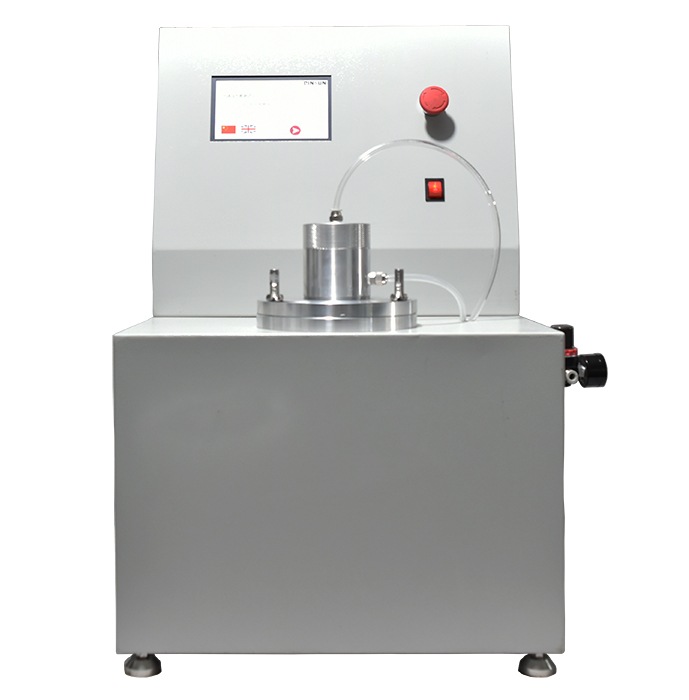

The Medical Mask Differential Pressure Tester is suitable for measuring the gas exchange pressure difference of medical surgical masks, and can also be used to measure the gas exchange pressure difference of other textile materials. Mainly used in medical device production, research and development, quality inspection departments and institutions.

Features

1. The suction air source is used as the power source of the instrument, which is not limited by the space of the test site;

2. Equipped with a high-precision differential pressure sensor, which digitally displays the differential pressure on both sides of the sample;

3. The special sample clamp ensures that the sample is firmly clamped.

technical parameter

Air source: suction type

Air flow: 8L/MIN

Sealing method: end face seal

Sample breathable diameter: Ф25MM

Differential pressure sensor range: 0～500PA

Display mode: digital display pressure

Power supply: AC220V 50HZ
